The Xtragen XT‑100 is a compact, high‑performance GNSS survey grade receiver designed to deliver centimeter‑level accuracy for professional surveying, mapping, and geospatial applications. Built with advanced GNSS technology, it supports simultaneous tracking of all visible satellite constellations including GPS, GLONASS, BeiDou, Galileo, QZSS, and SBAS (GAGAN), ensuring robust positioning performance in diverse environments.
With multi‑constellation and multi‑frequency support, the XT‑100 provides exceptional reliability and accuracy, even in challenging conditions such as urban canyons or obstructed environments. Its RTK performance delivers horizontal accuracy of 0.8 cm + 1 ppm and vertical accuracy of 1.5 cm + 1 ppm, with initialization times typically under 10 seconds and reliability greater than 99.9%.
The receiver supports single point positioning, PPP, and tilt survey modes, enabling flexible workflows. Its tilt compensation allows accurate measurements with pole inclinations up to 60°, with additional horizontal uncertainty typically less than 5 mm + 0.5 mm/° tilt. This makes the XT‑100 ideal for field surveyors who require speed, precision, and efficiency.
Communication & Connectivity:
- USB 3.1 Type‑C with OTG support for fast data transfer
- Nano SIM card slot for mobile connectivity
- BLE + DR for wireless communication
- 4G LTE multi‑network compatibility (FDD: B1, B3, B5, B8; TDD: B34, B38, B39, B40, B41)
- Supports industry‑standard data formats: CMR, CMR+, RTCM v2.x, RTCM v3.x, NMEA‑0183
Physical & Power Specifications:
- Dimensions: 130 × 66 × 29 mm
- Weight: 226 g (with battery)
- Storage: 32 GB internal ROM

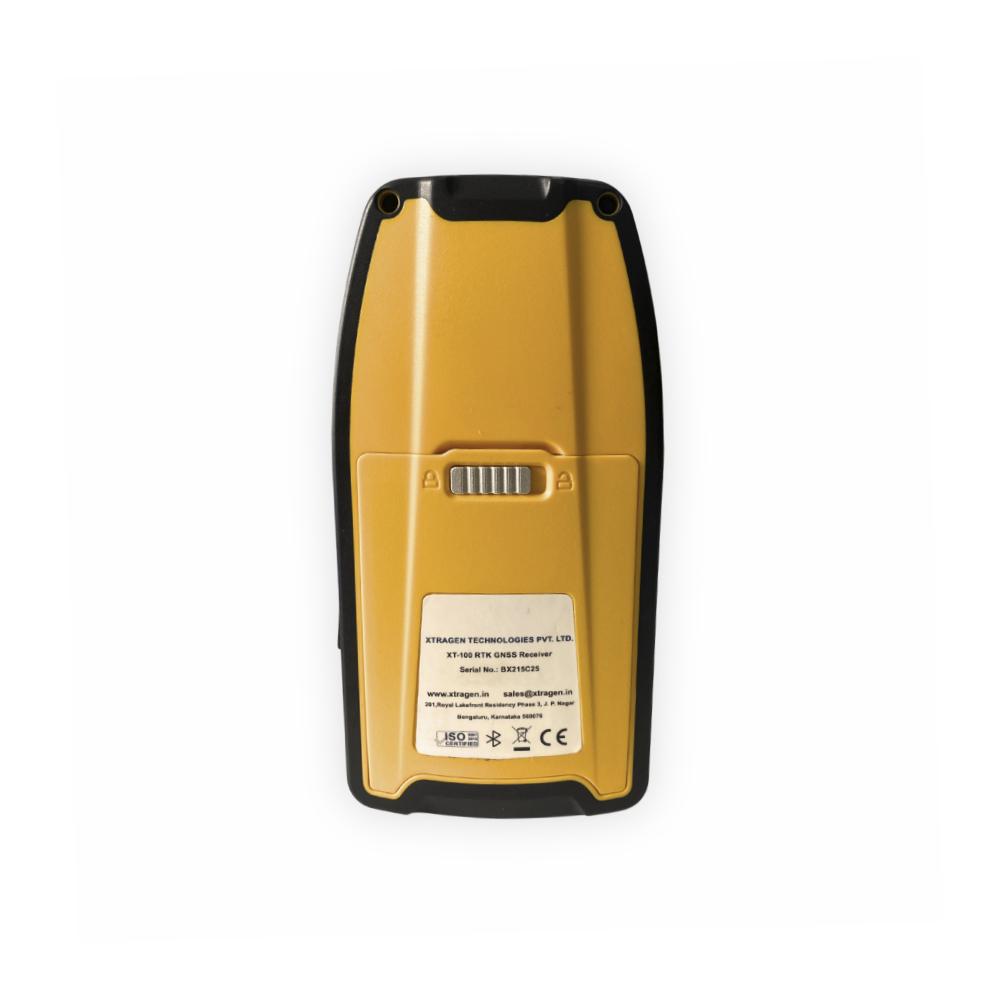

- Battery: 5160 mAh Li‑ion removable battery, up to 12 hours endurance
- Power Supply: 5V/2A

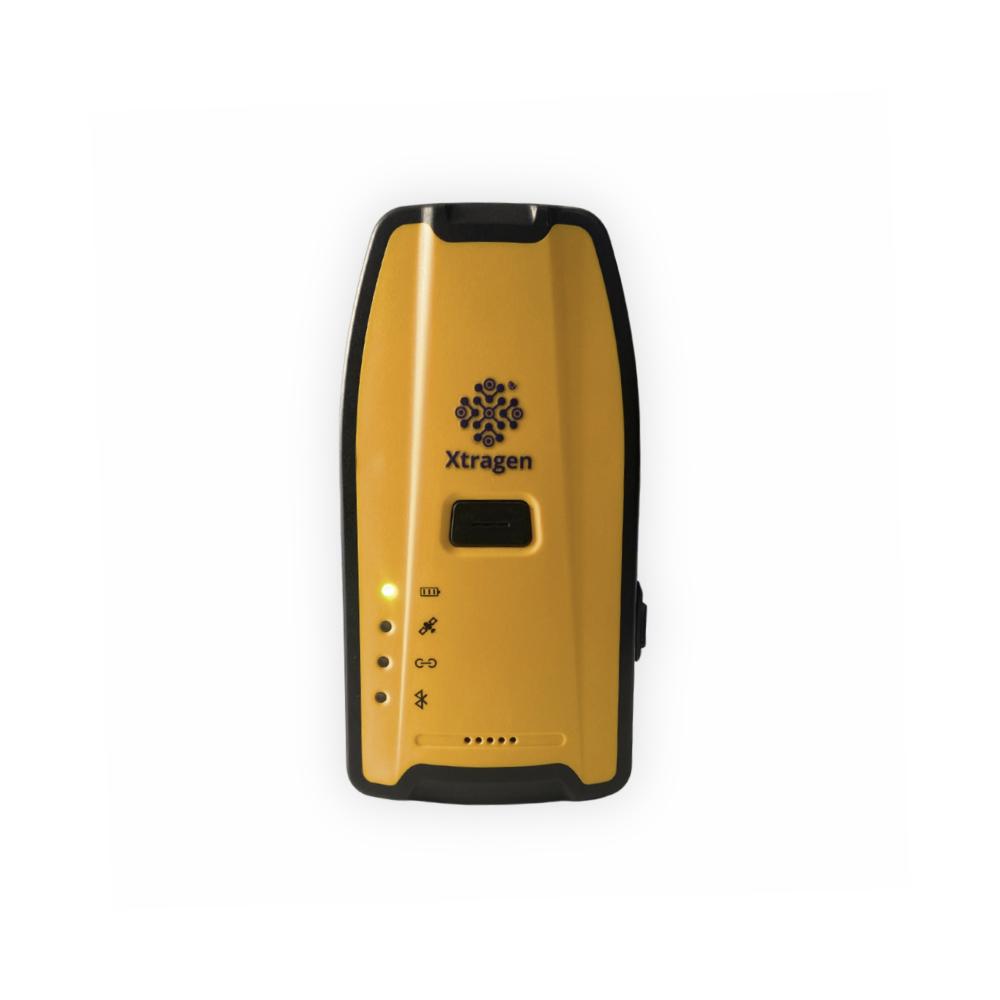

- Indicators: Power, Bluetooth, differential correction, and satellite status lights
Environmental Durability:
- Operating Temperature: –20°C to +65°C
- Storage Temperature: –40°C to +85°C
- Humidity: 90% non‑condensing
- Vibration Resistance: MIL‑STD‑810G, 514.6 compliant
- Water/Dustproof: IP67 rating for rugged field use
- Drop Resistance: Withstands 1.2 m free fall on concrete
The Xtragen XT‑100 is engineered for surveyors, GIS professionals, infrastructure developers, and scientific researchers who demand compactness without compromising on performance. Its lightweight design, long battery life, and rugged build make it the perfect companion for field operations.
As part of Xtragen Technologies Pvt. Ltd., this receiver reflects our commitment to enabling connectivity between technology and people. With over two decades of expertise in GNSS solutions, we ensure every product is built for accuracy, durability, and customer satisfaction.
